Monumental Daylighting with Clearspan™ Skyroofs

Clearspan™ Skyroofs

When you understand the huge impact healthy daylighting can have on human wellness, there’s no need to go small. Our skyroofs® offer unmatched options for monumental daylighting solutions. With Structures Unlimited, Inc., you can achieve spans in excess of 100 feet. This is perfect for creating impressive atriums and other common spaces, where people will want to congregate under the diffuse, glare-free light.

Our aluminum box-beam framing system clad with Kalwall translucent roof panels can be engineered to meet almost any design requirement, but our most popular clearspan skyroofs include: center ridge roofs | hip roofs | sawtooth shed roofs | segmented arches | segmented domes | pyramids & straight rafter circular skylights.

Our complimentary daylight modeling services help you tailor your daylighting design and optimize the best sandwich panel configuration for your project, whether new construction or a retrofit. Our services will verify light levels, predict sources of glare and document code compliance.

Design Options

Unitized Elements

We offer many unitized options for your skyroofs, including vision glazing, opaque panels and even operable roof elements.

Grid Patterns

The standard grid pattern for a skyroof is shoji, but custom variations may be possible based on the project.

Face Sheets

Tinted face sheets can change the exterior look of your skyroof. Crystal and white are standard options, but tinted colors include grays, blues and more.

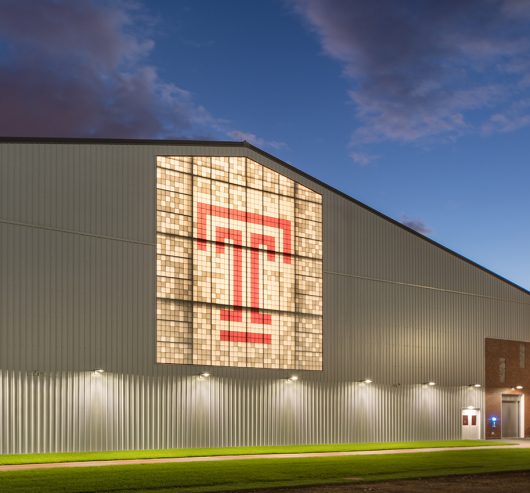

Temple University Indoor Practice Facility

Colored Inserts

For a pop of color in your roof, Kalwall panels can be designed with color inserts to create unique patterns.

Finish

Our skyroofs utilize Kalwall Corrosion Resistant Finish (KCRF™) as a high-performance architectural coating. KCRF comes in 13 standard colors or custom options to match your design.

Geometries

Our skyroofs are available in a wide variety of shapes, including center ridge, pyramid, shed, dome and more. We custom engineer our roofs to meet your needs.

Gutters + Snow Fences

We can add gutters as well as integrate snow fences into your skyroof design for additional functionality. Gutters can be concealed for a clean look.

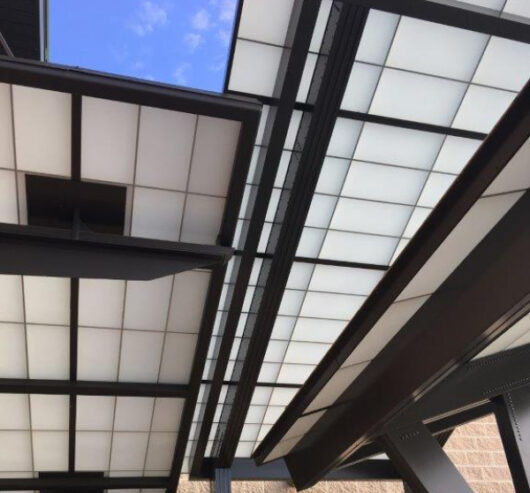

Panel Overhang

Typical unsupported panel overhangs are from 5” to 6”. Custom options may be available from 0” to 12” depending on project specifications.

Load More 01/04
